参数Parameter
|
驱动drive |
手轮、手柄 VOLANTE, MANEJAR |
|
公称通径Nominal diameter |
50-1200mm(可定做25、32、40)50-1200mm ( can be customized in 25,32,40) |
|
公称压力Nominal pressure |
1.0-1.6Mpa |
|
适用温度Applicable temperature |
EPDM:-29-+120℃ |
|
NBR:-29-+80℃ |
|
连接方式Connection mode |
对夹Clip |
|
阀体 Body |
铸铁Cast iron
|
|
阀板 plate |
316、铸体尼龙、铸铁镀镍316, cast nylon, iron plating |
|
阀座 Seat |
EPDM、NBR |
|
适用介质Applicable medium |
水及液体类介质Water and liquid medium |
|
可选附件Optional accessories |
限位开关、定位器、电磁阀、减压阀Limit switch, locator, electromagnetic valve, pressure reducing valve |
可选项：对夹式、多耳式、法兰式Optional: Wafer, ear type, flange type

多耳式ear type

大口径法兰式Large-diameter flange type

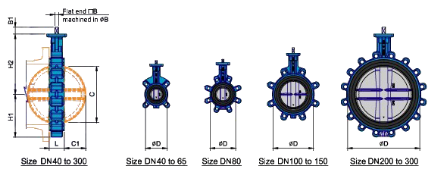

尺寸表（ANSI）
|
通径（mm） |
英寸” |
L |
H1 |
D |
C |
H2 |
L1 |
A |
H3 |
E |
F |
|
40 |
1 1/2 |
33 |
60 |
81 |
34 |
195 |
200 |
41 |
157 |
155 |
150 |
|
50 |
2 |
43 |
65 |
96 |
39 |
218 |
200 |
41 |
180 |
155 |
150 |
|
65 |
2 1/2 |
46 |
71 |
110 |
55 |
230 |
200 |
41 |
192 |
155 |
150 |
|
80 |
3 |
46 |
77 |
124 |
69 |
237 |
200 |
41 |
199 |
155 |
150 |
|
100 |
4 |
52 |
107 |
148 |
91 |
256 |
200 |
41 |
218 |
155 |
150 |
|
125 |
5 |
56 |
122 |
180 |
115 |
272 |
250 |
41 |
234 |
155 |
150 |
|
150 |
6 |
56 |
150 |
206 |
140 |
285 |
250 |
41 |
247 |
155 |
150 |
|
200 |
8 |
60 |
165 |
259 |
186 |
324 |
355 |
63 |
281 |
195 |
200 |
|
250 |
10 |
68 |
201 |
320 |
239 |
370 |
355 |
63 |
327 |
195 |
200 |
|
300 |
12 |
78 |
234 |
370 |
288 |
393 |
355 |
63 |
350 |
195 |
200 |
|
350 |
14 |
78 |
301 |
412 |
325 |
- |
- |
61 |
370 |
255 |
310 |
|
400 |
16 |
102 |
333 |
475 |
375 |
- |
- |
61 |
402 |
255 |
310 |
|
450 |
18 |
114 |
358 |
530 |
423 |
- |
- |
81 |
445 |
340 |
400 |
|
500 |
20 |
127 |
392 |
585 |
473 |
- |
- |
81 |
479 |
340 |
400 |
|
550 |
22 |
154 |
397 |
635 |
507 |
- |
- |
81 |
527 |
340 |
400 |
|
600 |
24 |
154 |
454 |
687 |
560 |
- |
- |
123 |
548 |
307 |
400 |
|
650 |
26 |
165 |
460 |
718 |
606 |
- |
- |
123 |
571 |
307 |
400 |
|
700 |
28 |
165 |
508 |
796 |
655 |
- |
- |
160 |
619 |
307 |
400 |
|
750 |
30 |
190 |
543 |
856 |
692 |
- |
- |
160 |
730 |
370 |
400 |
|
800 |
32 |
190 |
592 |
870 |
736 |
- |
- |
160 |
775 |
370 |
400 |
|
900 |
36 |
203 |
632 |
1003 |
841 |
- |
- |
160 |
805 |
370 |
400 |
|
|
