产品介绍
参数Parameter| 1 | 阀体 BODY | 304/316/316L |
| 2 | 阀瓣 VALVE CLACK | 304/316/316L |
| 3 | 吊环 LIFTING RING | ASTM A29 1035 |
| 4 | 螺钉 SCREW | ASTM A276 304/316/316L |
| 5. | 密封圈SEAL RING | NBR,PTFE,EPDM ALLOY STEEL |
| 公称直径 NOMINAL DIAMETER | DN50-200MM/2”-8” | |
| 适用介质 Suitable medium | 水、污水、油 Water, sewage, oil | |
| 公称压力 NOMINAL PRESSURE | PN1.6MPA- PN2.5MPA/150LB/300LB | |
|
适用温度 APPLICABLE TEMPERATURE |
乙丙橡胶EPDM:-40℃-135℃、氟化橡胶VITON:-29℃-205℃、丁腈橡胶NBR:-23℃-82℃。无阀座<400℃ | |

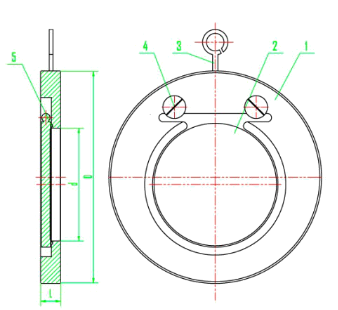

规格示例图series specifications example in Figure
| GB PN1.6/PN2.5 | ANSI 150LB/300LB | ||||||
| DN | d | L | D | SIZE | d | L | D |
| PN1.6/PN2.5 | PN1.6/PN2.5 | ||||||
| 50 | 30 | 19/22 | 109 | 2” | 30/25 | 19/22 | 103/110 |
| 65 | 40 | 19/22 | 129 | 2 1/2” | 40/40 | 19/22 | 122/128 |
| 80 | 52 | 19/22 | 144 | 3” | 52/50 | 19/22 | 135/147 |
| 100 | 71 | 19/24 | 164/170 | 4” | 71/75 | 19/24 | 173/179 |
| 125 | 93 | 19/26 | 194/186 | 5” | 93/95 | 19/26 | 195/214 |
| 150 | 114 | 19/22 | 221/226 | 6” | 114/115 | 19/29 | 220/249 |
| 200 | 157 | 29 | 275/286 | 8” | 157/145 | 29/43 | 277/305 |
