参数Parameter| 空气驱动 Air driven | 压缩空气5-7bar（可带手轮）Compressed air5-7bar (with a hand wheel) |
| 公称通径Nominal diameter | 8-32mm |
| 公称压力Nominal pressure | 1.0-42MPa |
| 适用温度Applicable temperature | PTFE:-29-+178℃ |
| 连接方式Connection mode | 螺纹、对焊 |
| 阀结构Valve structure | 两通、三通 |
| 阀体 Body | 304、316、316L |
| 阀球 Valve | 304、316、316L |
| 密封材质Sealing material | PTFE、 |
| 适用介质Applicable medium | 气体、水、及油类Gas, water, and oil |

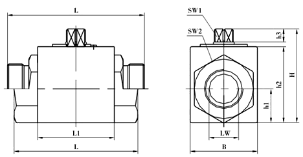

规格示例图series specifications example in Figure
尺寸表
| 通径mm | 英寸”(d1) | PN(bar) | L | L1 | LW | i | B | H | h1 | h2 | h3 | SW1 | SW2 |
| 04 | 1/8 | 500 | 69 | 40 | 06 | 10 | 26 | 45 | 13.5 | 33 | 8 | 9 | 22 |
| 06 | 1/4 | 500 | 69 | 40 | 06 | 14 | 26 | 45 | 13.5 | 33 | 8 | 9 | 22 |
| 10 | 3/8 | 500 | 72 | 42 | 10 | 14 | 32 | 49 | 16 | 36 | 10 | 9 | 27 |
| 13 | 1/2 | 500 | 83 | 48 | 12 | 16 | 35 | 49 | 17 | 40 | 10 | 9 | 30 |
| 16 | 1/2 | 400 | 83 | 48 | 15 | 16 | 38 | 61 | 19 | 45 | 11 | 9 | 32 |
| 20 | 3/4 | 315 | 95 | 60 | 20 | 18 | 48 | 70 | 25 | 55 | 11 | 12 | 41 |
| 25 | 1 | 315 | 113 | 65 | 25 | 21 | 57 | 79 | 28.5 | 64 | 11 | 12 | 50 |
| 32 | 11/4 | 315 | 110 | 84 | 32 | 22 | 75 | 101 | 37.5 | 84 | 12 | 14 | 60 |
| 40 | 11/2 | 315 | 130 | 91 | 38 | 24 | 85 | 112 | 42.5 | 95 | 12 | 14 | 70 |
| 50 | 2 | 315 | 140 | 100 | 48 | 26 | 105 | 131 | 52.5 | 112 | 12 | 14 | 80 |
